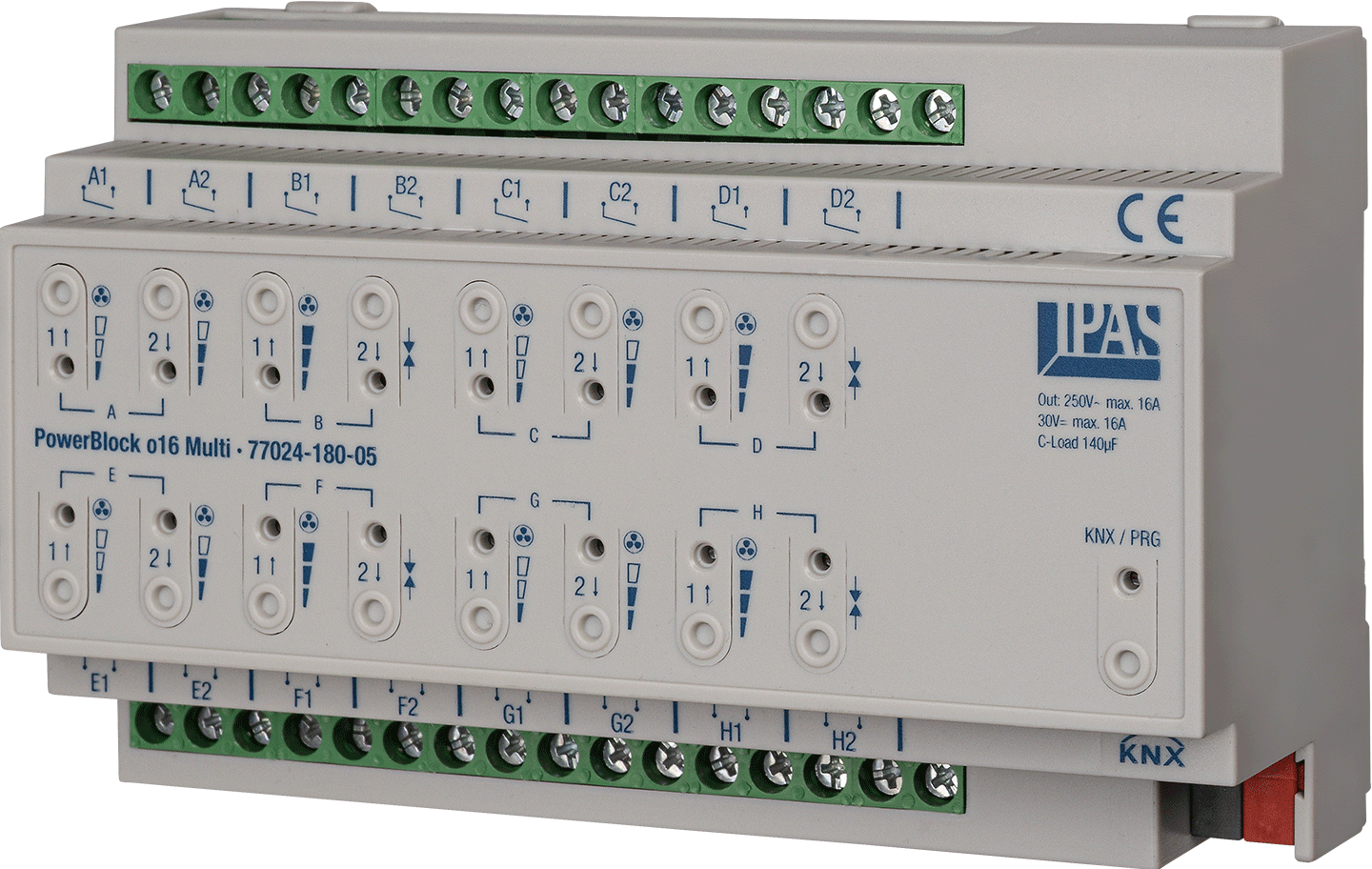

PowerBlock o16 Multi - KNX actuator with 16 binary outputs. Each output has a maximum load of 16A and is capable for capacitive loads (<140μF). The contacts can be operated manually by push buttons with feedback. The ETS application program enables numerous functions:
- 16 x binary outputs for switching
- 8 x Shutter
- 4 x Fan Coil (3 level for Fan Coil, 1 output for valve)
- Complex Logic
- Scene
- Threshold
- Timer-Module
The device is available in a 8 TE plastic casing for DIN rail mounting
