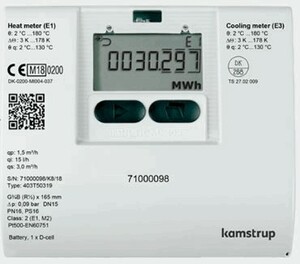

Kamstrup ultrasonic heat meter Multical 403,
KNX standard and KNX quick
- electronic heat and cooling meter
- accuracy class 2
- MID approval according to DIN EN 1434
- ultrasonic flow sensor
- compact meter, calculator not detachable
- two temperature sensors with 1.5m cable
- up to Qp 6 m 3 /h short direct sensor incl. nipple
- from Qp 10 m 3 /h pocket sensor incl. sensor pocket
- needs 230V supply
- including KNX bus coupling unit inside the meter
- full FacilityWeb functionality
- price including calibration fee
- KNX quick included
- programmable via ETS with coding switches set to 0
Remote re-configuration and long-time accuracy
Imagine that utilities’ heat meters can be configured with new settings adjusted to the current needs – without logistical challenges and direct access to the meters and without legal registers, meter readings or network control being affected.
Imagine, that the meter’s log can be read in order for abnormal consumption patterns to be investigated – without having to disturb the customer unnecessarily.
With the new built-in 2-way communication in MULTICAL® 403 and a READy remote reading system, it is now possible to perform remote configuration of the meters and reading of the log without direct access to the installation.
Discover the possibilities within flexible and easy remote configuration of heat meters – for less hassle for both the utility and the consumer.
Flexibility and longtime accuracy
Now, you only need to keep one meter in stock. With MULTICAL® 403 everything from inlet/outlet position to energy unit, cut-off dates and much more can be configured individually via the meter’s front panel directly at the installation site.
This allows you to keep a low stock and save resources previously spent on planning.
MULTICAL® 403 can be fitted with a selection of advanced communication modules. Kamstrup offers modules with Modbus, BACnet, M-bus, wireless M-bus and analogue outputs. By combining the meter’s very fast integration time and the modules’ optimised power consumption, you gain access to updated and very frequent meter data. By using M-Bus, the meter obtains a battery lifetime of up to 16 years with meter readings via the module every 10 seconds.
You can upgrade through separate software updates for the meter and module respectively as new possibilities and challenges occur without interfering with legal registers.
