Manufacturer: Weinzierl
Reference 1: 5224
Reference 2: KNX IO 510
Series:
Colour: -
P.G.: -
Weight: -
Web Code: 19733

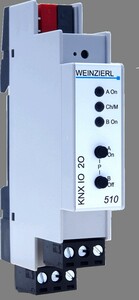

COMPACT SWITCHING ACTUATOR WITH 2 BI-STABLE RELAY OUTPUTS. KNX IO 510

List Price:   Log in to view prices
* Ask our commercial agents about your discount
  DESCRIPTION

KNX IO 510

• Compact Switching Actuator
• 2 Outputs Relays 230V ~, 8A, bi-stable
• Switching, staircase function, heating actuator
• Integrated logic and timer functions
• Connectors: KNX, plug-in screw connectors for IO
• DIN rail mounted device, 1 unit, 18 mm

The KNX IO 510 (2O) is a compact switching actuator with 2 bi-stable relay outputs. The actuator provides the function for universal outputs including scene control, timer, staircase lightning and to control heating valves (PWM for thermoelectric valve drives).

Two push buttons and three LEDs allow a local operation and visualization of the device state. In addition to the output channels the device includes 16 independent functions for logic or timer control.
  Technical data
 Mechanical data

    Housing: plastic
    DIN rail mounted device, width: 1 modules (18 mm)
    Weigth: approx 50g

User Interface

    two keys for on device settings
    three multi color LEDs
    KNX programming LED and KNX programming key

KNX

    Device Model System B
    Compatible with ETS 4.2 (or higher)

Connectors

    Connector for KNX Bus (red / black)
    Pluggable screw connector (3 poles) for actuator channel 1
    Pluggable screw connector (3 poles) for actuator channel 2

Output channels (actuator)

    Relay type: 230V ~ / 8A, bi-stable
    Depending on load type (capacitive or inductive)
    The switching power can be reduced significantly.
