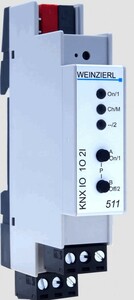

COMPACT SWITCHING ACTUATOR WITH 1 BI-STABLE OUTPUT 8A AND 2 BINARY INPUTS, KNX IO 511

List Price:   Log in to view prices
* Ask our commercial agents about your discount
  DESCRIPTION

KNX IO 511

• Compact Switching Actuator with Binary Input
• 1 output relay
• Switching, staircase function, heating actuator
• 2 inputs 12..230 V, galvanically isolated
• Switching, dimming, blinds, scenes, impulse counter
  Zero crossing detection via input channel
• KNX compatible replacement for conventional
  impulse switches
• Integrated logic and timer functions
• Connectors: KNX, plug-in screw connectors for IO
• DIN rail mounted device, 1 unit, 18 mm


The KNX IO 511 (1O2I) is a compact switching actuator with 1 bi-stable output and 2 binary inputs. The actuator provides the function for universal outputs including scene control, timer, staircase lighting and heating valves (PWM for thermoelectric valve drives). The inputs can be connected to conventional switches with an external voltage of 12 to 230 V. In ex-factory settings the inputs are connected internally to the actuator. The actuator combined with input B1 serves as a latching relay. Input B2 is used for zero crossing detection.
Two push buttons and three LEDs allow a local operation and visualization of the device state.

In addition to the output and input channels the device includes 16 independent functions for logic or timer control.
  Technical data
 Mechanical data

    Housing: plastic
    DIN rail mounted device, width: 1 modules (18 mm)
    Weigth: approx 60 g

User Interface

    two keys for on device settings
    three multi color LEDs
    KNX programming LED and KNX programming key

KNX

    Device Model System B
    Compatible with ETS 4.2 (or higher)

Connectors

    Connector for KNX Bus (red / black)
    Pluggable screw connector (3 poles) for actuator channel 1
    Pluggable screw connector (3 poles) for input channel 2 and 3

Output channel (Actuator)

    Relay type: 230V ~ / 8A, bi-stable
    Depending on load type (capacitive or inductive)
    The switching power can be reduced significantly.

Input channels (Binary in)

    Voltage: 12 .. 230 V = ~
    Current: <1 mA
