Manufacturer: Steinel
Reference 1: 008789
Reference 2:
Series:
Colour: -
P.G.: 1
Weight: -
Web Code: 19513

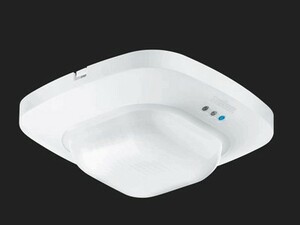

IR presence detector QUATTRO HD KNX flush mounted

List Price:   Log in to view prices
* Ask our commercial agents about your discount
  DESCRIPTION



presence detector
IR Quattro HD

https://www.youtube.com/watch?time_continue=8&v=I7NDcgy28xE

Nobody captures finer! Infrared Presence Detector PRO IR Quattro HD KNX for indoor use, ideal for medium to large offices, conference and meeting rooms, classrooms and lecture theaters, sports halls and warehouses, mounting height up to 10 m, with digital BUS interface for controlling 4 light channels and HVAC, 4800 switching zones for highest detection quality, 64 m² real presence area, square detection, mechanically scalable.

Latest detection quality. For the most modern buildings.

When it comes to intelligent building automation, presence detectors with extremely good detection are required. The IR Quattro HD leaves no answer unanswered: 4,800 switching zone closures in the quadratic presence area of ??64 m2 - which is mechanically scalable without any loss of quality - virtually eliminates false circuits or blind spots. This is high-definition quality in pure culture and a dream come true for architects, builders and users alike.

Technical specifications

Presence Control PRO IR Quattro HD, installation height 2.8 m
(white = tangential, orange = radial, gray = presence)
European Article Number (EAN)
4007841008789
Dimensions
120 x 120 x 70 mm
execution
presence detector
supply voltage
KNX bus voltage
recommended mounting height
2.5-10.00 m
sensors
13 acquisition levels
4800 switching zones
Location
in the interior of buildings
Assembly
blanket
settings
via ETS software, remote control or bus
Detection square presence
Max. 8 x 8 m (64 m²)
Acquisition Square Radial
Max. 8 x 8 m (64 m²)
Acquisition square tangential
Max. 20 x 20 m (400 m²)
Light channels light 1 - light 4
Switching / dimming, switching operation, constant light control, overrun time
basic brightness
Duration ONE, 1-255 min., 10-50%, all night
delay
Room monitoring, 0-255 min., Follow-up time 1-255 min.
Output HVAC
depending on presence
further outputs
Brightness value, sabotage protection
Output brightness value
in lux
Degree of protection (IP) with AP box
IP54
protection class
II
casing
UV-resistant, paintable
model
KNX
