Manufacturer: MDT
Reference 1: AKD-0424R.02
Reference 2:
Series:
Colour: -
P.G.: B
Weight: 0,177 Kg.
Web Code: 18682

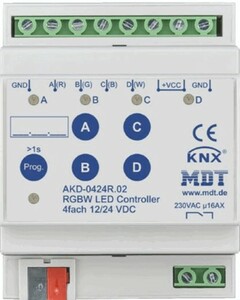

RGBW LED DIMMER Controller 12/24V RGBW LED stripes 4 CHANNELS

List Price:   Log in to view prices
* Ask our commercial agents about your discount
  DESCRIPTION

The MDT LED Controller receives KNX/EIB telegrams and controls 12/24V RGB LED stripes.

    Production in Germany certified according to ISO 9001
    Extensive function extension
    Absolute and relative dimming for HSV color space and RGB
    Tunable White color temperature control
    Selectable dimming curve and PWM frequency up to 1000Hz
    Global and individual dimming speeds
    Individual and predefined sequences (e.g. TV Simulator)
    Repetition of sequences for automatic color control
    Suitable for 12/24V CV LED (Common Anode)
    3A for each color channel (flush mounted device)
    4A for each color channel (MDRC device)
    Parallel operation of 2 channels
    Selectable load distribution:
    AKD-0424R.02: 4 channels with 4A or 3 ch. with 3A/1 ch. 7A
    AKD-0324V.02: 3 channels with 3A or 2 ch. with 2,25A/1 ch. 4,5A
    AKD-0424V.02: 4 channels with 3A or 3 ch. with 2,25A/1 ch. 5,25A
    Operating modes:
    4 x White, RGB, RGBW, Tunable White (MDRC device)
    3 x White, RGB, Tunable White (flush mounted device)
    Automatic color temperature control Dim2Warm
    Dynamic daylight control HCL (Human Centric Lighting)
    Automatic time-dependent dimming
    Day/night function
    Overcurrent and overtemperature supervision
    Intelligent 16A C-Load Relay output to control external
    LED power supply
    3 years warranty
